FJ09 - Need photo of ECU location


How2

Recommended Posts

Hello

I do have the book and really don't want to tear into anything right now.


Does any one have a photo of the ECU location?


That would be helpful, anyone.


Thanks




H2

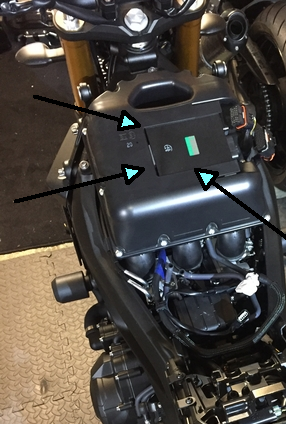

Quick google


Link to comment
Share on other sites

@how2 it's not as difficult to get to as one would think... just have to remove a bunch of plastic and the tank (or just turn it out of the way)

'15 FJ-09 w/ lots of extras...

Fayetteville, GA, USA

Link to comment
Share on other sites

STOP
Don't remove the tank.
Take off the right side plastics.
Tilt the tank up, support it with beer cans, blocks of wood, whatever, you'll figure it out.
The ECU slides out from right side easily.
You don't have to dis-connect anything from the tank. This applies to the 15's to the 17's.


Link to comment
Share on other sites

  • Supporting Member
STOP Don't remove the tank.
Take off the right side plastics.
Tilt the tank up, support it with beer cans, blocks of wood, whatever, you'll figure it out.
The ECU slides out from right side easily.
You don't have to dis-connect anything from the tank. This applies to the 15's to the 17's.



Wha??  To tilt the tank up you must remove the left AND right side plastics.  You have to remove ALL of the plastics mounted to the tank.


The only thing you dont need to remove is the fuel line, electrical connector and vent hoses on the bottom of the tank.



***2015 Candy Red FJ-09***

Link to comment
Share on other sites
